RZCAM Series

CAD/CAM cutting machines for shoe uppers — available in 3 working-area sizes

Select Series

Full Specifications

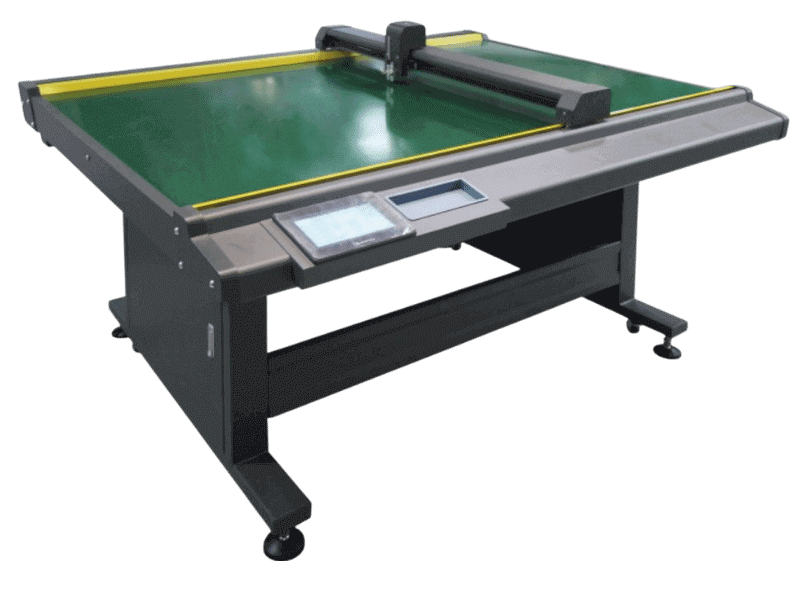

RZCAM 1209

Model	RZCAM5-1209AF-II
Effective working area	1200mm × 900mm
Cutting speed	100–800 mm/s
Cutting thickness	0.5–2 mm
Method of fixing material	Vacuum absorption, Electrostatic absorption, Adhesive adherence
Cutting tools	Vector knives
Types of pen	Gel pen, Mark pen, ball pen, silver pen
Knife property	8 different types of cutting property, complete cutting, kiss-cutting.
Motor	Servo Motor, Stepper Motor
Cutting accuracy	±0.1 mm
Machine resolution	0.01 mm
Software resolution	0.025 mm
Computer connecting	RS232 serial port, LPT, RJ45 network port
Memory	4MB
Software program	HP-GL and GP-GL compatible mode
Human Machine Interface (HMI)	LCD display, Touch control button, Touch screen
Voltage	220V
